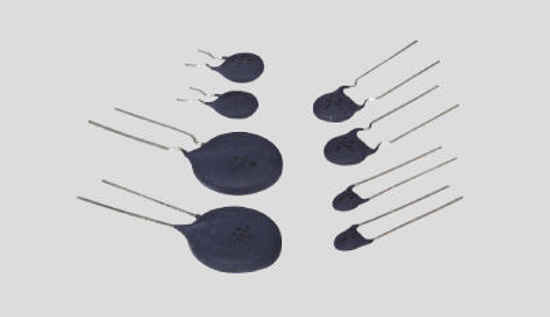

Picture of 3D2-14

3D2-14

Qty

Products specifications
Customization

Attribute name	Attribute value
Product Series	Series D2
Thermal Time Constant	80 s
Dissipation Factor	36 mW / °C
Product Line	Current Regulating Diodes
Products	Power Thermistors
Operating Temp. Range	- 40 to 160 °C
Zero-Power Resistance at 25 °C	3 Ω
B Value	2900 K
Max. Current at 25 °C	5 A
Residual Resistance	0.2 Ω
Max. Capacitance (AC) 100 V	3080 μF
Max. Capacitance (AC) 120 V	2110 μF
Max. Capacitance (AC) 220 V	630 μF
Max. Capacitance (AC) 240 V	520 μF
Energy Surge Capacity	15.2 J
Datasheet
